Who

wulff

Why

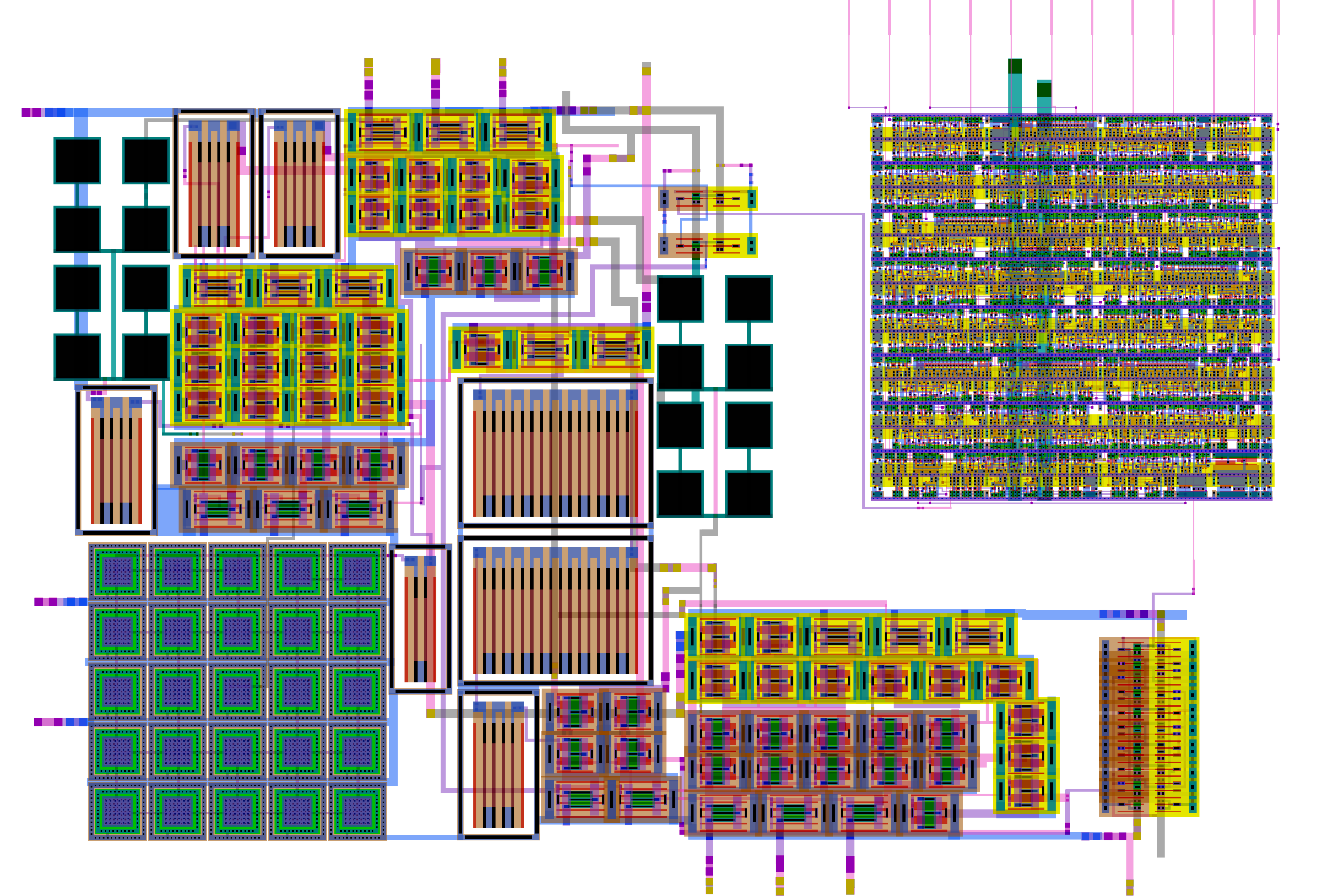

# How # What | What | Cell/Name | | :---- | :----: | | Schematic | design/LELO_GR03_SKY130A/LELO_GR03.sch | | Layout | design/LELO_GR03_SKY130A/LELO_GR03.mag | # Signal interface | Signal | Direction | Domain | Description | | :--- | :---: | :---: | :--- | | VDD_1V8 | Input | VDD_1V8 | Main supply | | OSC_TEMP_1V8 | Output | VDD_1V8 | Temperature dependent oscillation frequency| | PWRUP_1V8 | Input | VDD_1V8 | Power up the circuit | VSS | Input | Ground | | # Key parameters | Parameter | Min | Typ | Max | Unit | | :--- | :---: | :---: | :---: | :---: | | Technology | | Skywater 130 nm | | | | AVDD | 1.7 | 1.8 | 1.9 | V | | Temperature | -40 | 27 | 125 | C |
